PPG Filter Deluxe

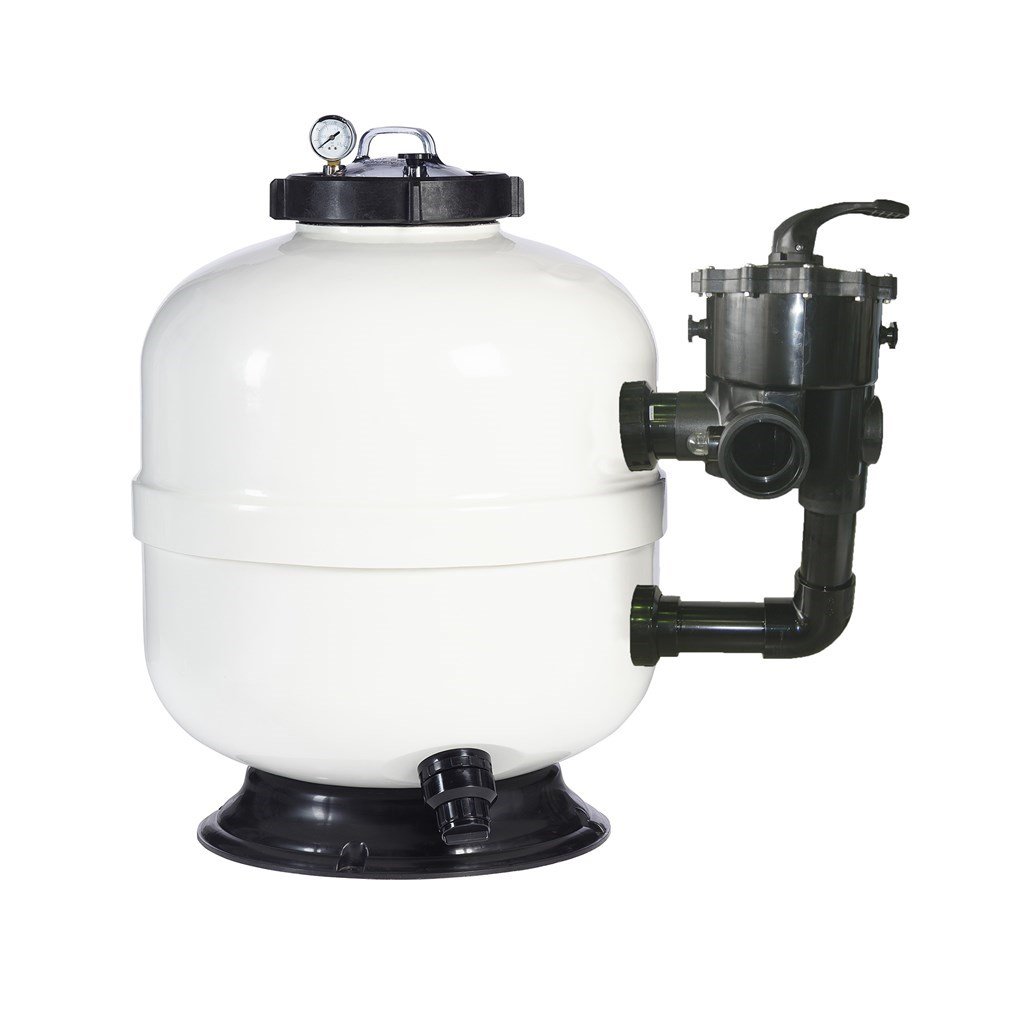

PPG Deluxe Filter

PPG Deluxe filter is a glass fiber reinforced filter and comes with a manual 6-way valve.

What does the 6-way valve do

The manual 6-way valve is easy to handle. Made of extremely durable sealing materials.

1. Filter: Filters the pool water through the filter
2. Rewind: Hereby you will remove the filter media (sand, glass or AFM) to clean in the filter
3. Rinse: After backwashing you can 'rinse' residual dirt that is in the pipes
4. Waste: carries the pool water directly to the drain
5. Circulation: Let the pool water circulate through the valve but not through the filter. For example, to optimally mix a chlorine shock.
6. Closed: No circulation! The pump must not be used for this.

READING TIP: Pool maintenance

product strengths PPG Deluxe Filter

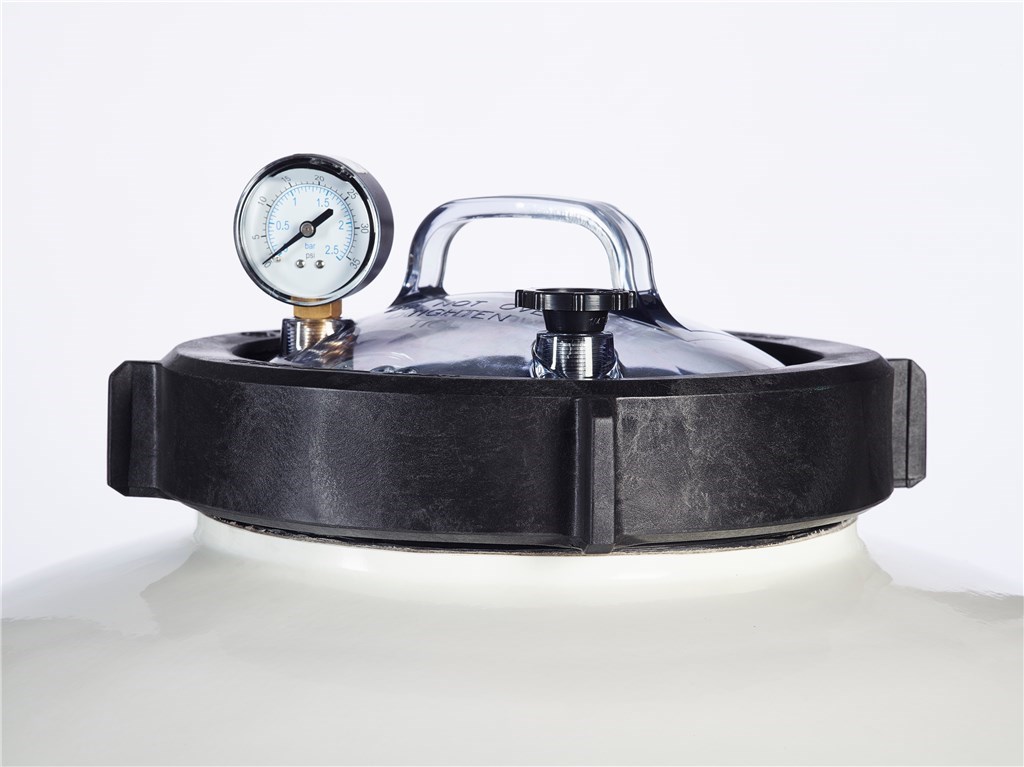

• 8″ transparent lid of vent valve and pressure gauge
• Double drain stop makes it possible to drain only water or water & filter media

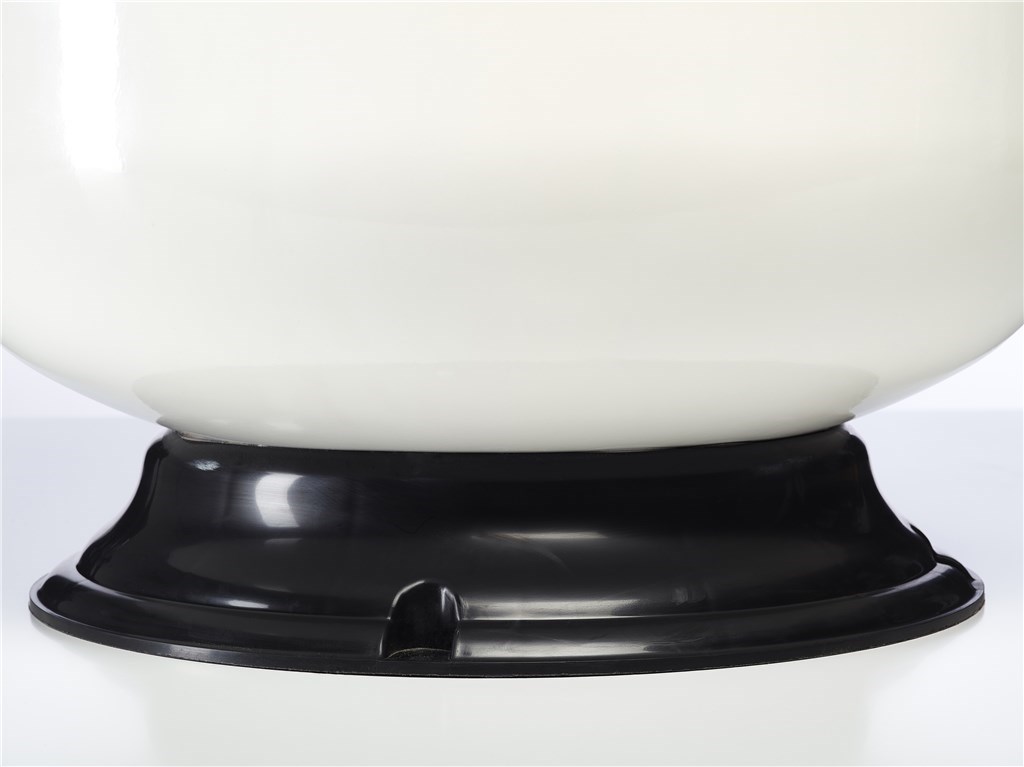

• Sturdy base of industrial quality for stable floor mounting
• Large water diffuser and easy-to-reach venting system

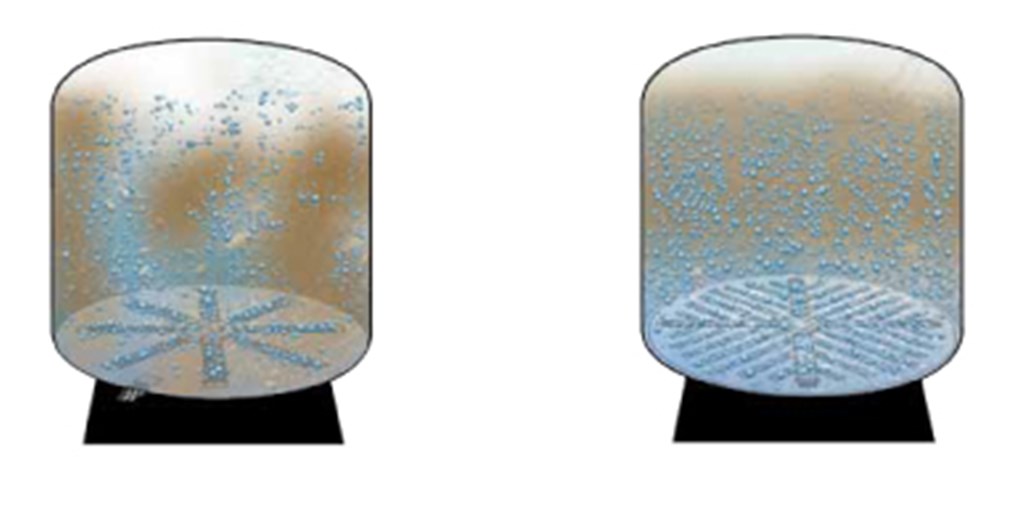

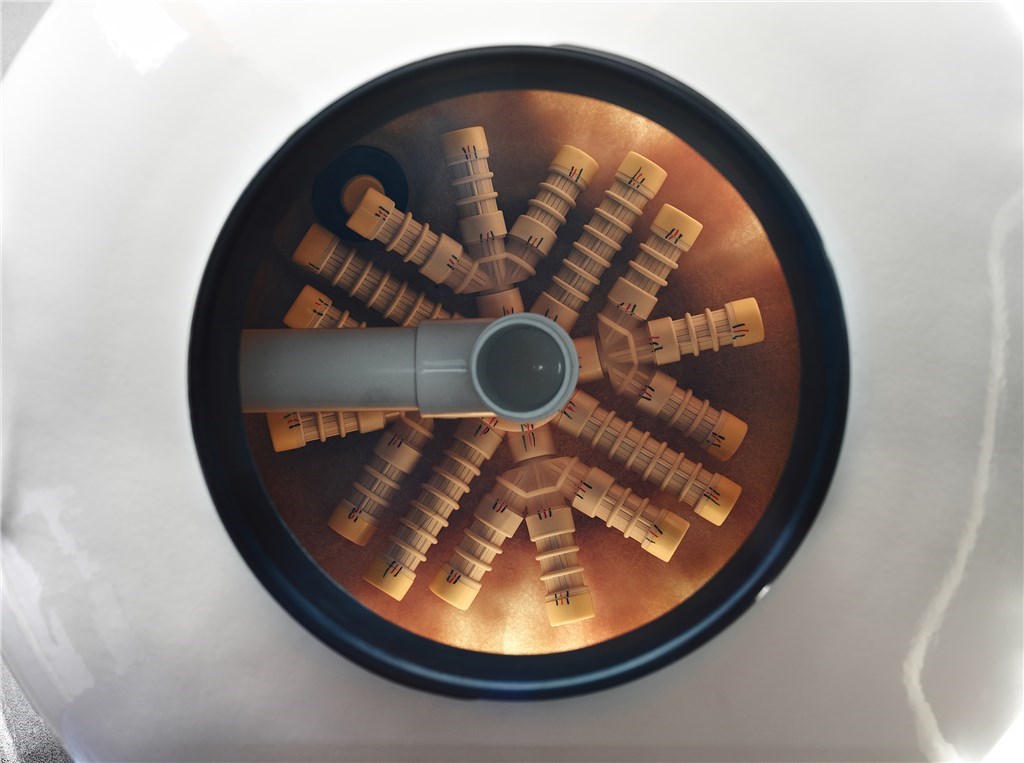

improved distribution arm

At the bottom of the filter, the distribution arm is provided in a "herringbone" pattern. This ensures that there are no dead spots
arise between the side branches of the distribution arm. This benefits both the filtration and the backwash function.
