Heat exchanger Horizontal

Hi Flow heat exchanger for horizontal mounting

The Hi-Flow horizontal heat exchanger is a solid and frequently used heat exchanger, with an efficient heat transfer capacity. The heat exchanger is specially designed for swimming pool applications and other applications where high capacity and minimal pressure loss is required. All models can be installed together with water heaters, heat pumps, solar panels and other heat sources. The design is light and compact. The material used – acid resistant stainless steel ASI316 INOX – has been selected for use in an environment where there is a risk of corrosion.

Hi Flow heat exchanger types

The heat exchanger is horizontal exclusive couplings, circulation pump and aquastat. There is a clear instruction drawing for assembly. Operation is simple and reliable. There is also a vertical version of this heat exchanger : Heat exchanger vertical

Characteristics:

• Efficient heat transfer
• Specifically for swimming pools (NOT FOR SALT ELECTROLYSIS BATHS)
• High capacity
• Minimal pressure loss
• Compatible with all heating systems
• Lies and Compact
• Heat exchanger in INOX 316

What capacity do you need for your pool?

The capacity you need to heat up the pool water depends on various factors, including Delta T, starting temperature, desired pool water temperature, cover (louvers or summer cover),…. To keep it simple, you can calculate that you need between 0.5 to 0.75kW /m³ of pool water for efficient heating. Please note that the capacity of the heat source is higher than that of the heat exchanger! A horizontal heat exchanger of 70kW with a heat source that gives a maximum of 50kW is completely pointless.

Technical specifications of the heat exchanger horizontal

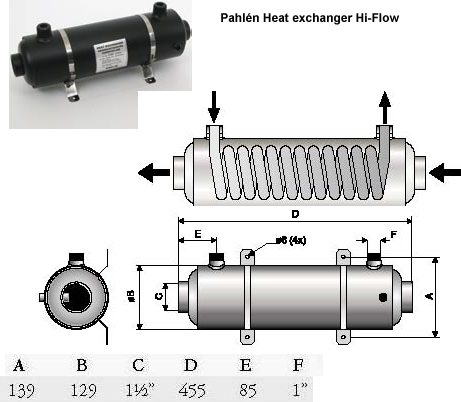

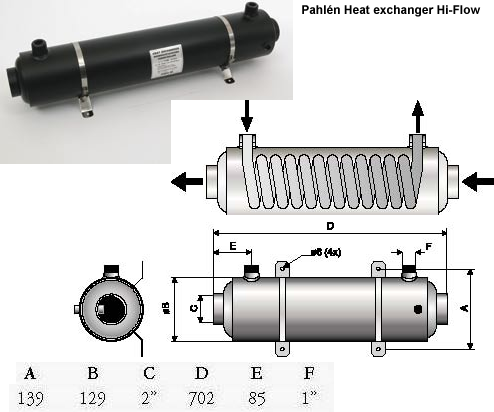

Model: HF 40 – HF 75
Capacity: 40kW 135kBtu/h – 75kW 260kBtu/h
Primary circuit, hot water:
Flow rate: 60l/min – 60m/min
Pressure drop: 1.6 H(m) – 2.1 H(m)
Max pressure: 60 bar - 60 bar
Secondary circuit, cold water:
Flow rate: 300l/min – 300l/min
Pressure drop: 1.8 H(m) – 0.9 H(m)
Material: stainless steel 316
Type: Hi-flow
Pool volume (m³): 80 – 150
Power (kW): 40 – 75
